3DeVOK 3DeVOK MT Professional 3D Scanner
3DeVOK MT Professional 3D Scanner is a versatile all-in-one solution for artistic design, reverse engineering, 3D measurement, 3D visualization, 3D printing, and research and education. Built for professional performance, the 3DeVOK MT combines advanced multi-light source technology with robust scanning software, delivering enhanced efficiency and versatility for a wide range of applications.
- Engineered to provide fast and reliable scanning performance
- Includes powerful, user-friendly software to streamline workflows
- Perfect for reverse engineering, artistic design, human digitization, and research
Wireless Combo includes: Scanner and Airgo Wireless Handle
To learn about available discounts, training, and maintenance options, please use the form below and a MatterHackers Expert will contact you within one business day. Alternatively, you can always feel free to give us a call at +1 (800) 613-4290 or email sales@matterhackers.com.
To get an instant quote, add everything you need to your cart, and click "Download as quote".

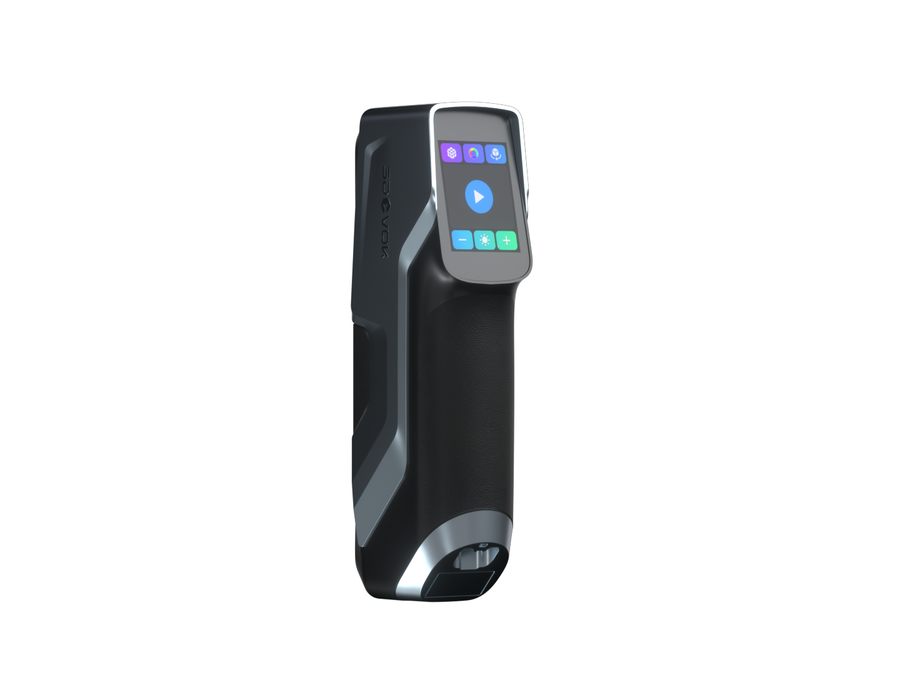

3DeVOK MT Professional 3D Scanner
The Next-generation Magic Tool
The 3DeVOK MT Professional 3D scanner takes 3D scanning to a higher level. With triple light source integration, this scanner is incredibly adaptable and is fit for various different applications. By utilizing blue and infrared crossed lasers, this scanner enables fast, flexible, and efficient marker-free scanning
Key Features of the 3Devok MT Professional 3D Scanner:
- Fast scanning with frame rates up to 70 FPS
- Directly scans highly textured objects
- Compatible with black and reflective surfaces without additional scanning sprays
- 34 blue laser lines, 22 infrared laser lines, and large-area infrared speckle
Versatility and Efficiency
The 3DeVOK MT Professional 3D scanner is an incredibly versatile device that scans objects of almost any kind. This device excels in various fields, like artistic design, 3D visualization, and more.
- Utilizes various lasers to capture traditionally difficult material to scan, like black and reflective surfaces
- Easily scans objects with rich textures and geometric features
- Offers scanning speeds up to 70FPS while maintaining smooth data acquisition in both low light and direct sunlight
Large Object Scanning
The 3DeVOK MT Professional 3D scanner is equipped with large-area infrared speckle scanning that allows it to cover an incredibly wide area per frame. Made with safety in mind, this device can also conduct full-body scans.
- Large-area infrared speckle scanning covers up to 1,100mm x 1,100mm per frame.
- Successfully scans up to 1,500m away while preserving intricate details
- Capable of full-body scans with eye-safe technology (IEC 60825 compliant)
Precision and Performance
The 3DeVOK MT Professional 3D Scanner provides exceptional scanning accuracy with up to 0.1mm precision. Designed for efficiency, this scanner rapidly captures large objects while maintaining it's precise quality.
- Achieve up to 0.1mm accuracy for detailed, professional results
- Scan large objects within minutes, maximizing efficiency
- Designed to handle large volume scans with ease
3DeVOK MT Technical Specifications
| Specification | 34 Blue Laser Lines | 22 Infrared Laser Lines | Infrared VCSEL Structured Light |
|---|---|---|---|
| Laser Class | Class II (Eye-safe) | Class I (Eye-safe) | Class I (Eye-safe) |
| Scan Features | Markerless scanning | Markerless scanning Light-free scanning |
Markerless scanning Light-free scanning Partial fine scanning Rapid scanning at ultra-large FoV |
| Basic Accuracy ✱ | Up to 0.04 mm | ||
| Volumetric Accuracy ✱ | Up to 0.04 mm + 0.06 mm/m | ||
| Point Distance | 0.05 – 5 mm | 0.1 – 5 mm | 0.1 – 5 mm |
| Alignment Mode | Support hybrid, markers, texture, and geometric features alignment | Support hybrid, texture, and geometric features alignment | |
| Ability to Capture Texture | Yes | ||
| Scanning Distance | 150 – 1,000 mm | 150 – 1,000 mm | 150 – 1,500 mm |
| Field of View | 140 × 140 mm – 490 × 490 mm | 140 × 140 mm – 490 × 490 mm | 50 × 75 mm – 1,100 × 1,000 mm |
| Scanning Rate | Up to 3,300,000 Points/s | Up to 2,450,000 Points/s | Up to 4,500,000 Points/s |
| Output Formats | *.obj, *.stl, *.ply, *.asc, *.mk2, *.txt, *.epi, *.api, *.spi, *.map, *.sk | ||
| Operating Conditions | 0–40°C, 10%–90% RH (non-condensing) | ||
| Interface | USB 3.0 | ||
| Scanner Dimensions & Weight | Dimensions: 215 × 73 × 53 mm; Weight: 640 g | ||
| Power Source | DC: 12 V, 5.0 A | ||
| Certifications | CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC | ||
| Recommended PC Configurations | OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above; Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics memory: 6GB and above |
✱ The laboratory theoretical accuracy test results are subject to uncertainty errors.
What's in the Box:
Customer Guides
- 3DeVOK MT Quick Guide
- 3DeVOK MT User Manual
