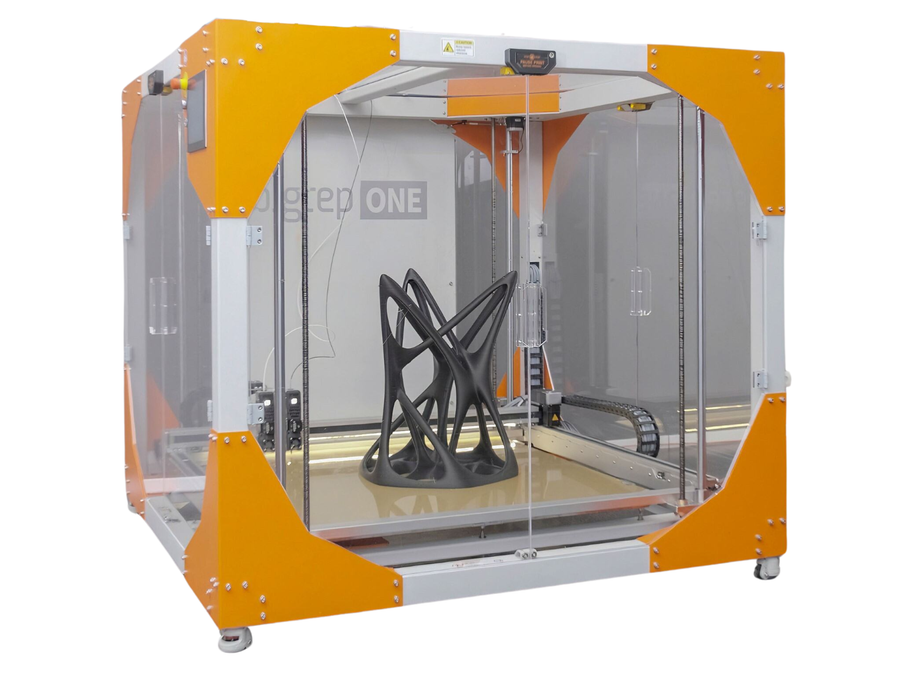

BigRep BigRep ONE.5X 3D Printer
The next evolution in large-format 3D printing has arrived. With a massive build volume and robust components, the new BigRep ONE.5X builds on a legacy of strength, precision, and reliability, once again setting the standard for industrial 3D printing.
- Spacious build volume of one cubic meter.
- Automated calibration and adaptive leveling ensure accurate, repeatable results.
- High-speed extrusion for faster, more consistent 3D prints.
- Advanced algorithms improve extrusion accuracy, especially at edges and corners.
| List Price: | $69,800.00 |
|---|---|
| Price: | $69,800.00 Financing starts at: $1284 /mo |
| Price: | $... |
| Order Now: | Processed Immediately Ships via Freight - some fees may apply. |
This item cannot be shipped to a PO Box or APO/FPO/DPO address.
Request Quote
loading...
Product No. M-NH2-6N75
BigRep ONE.5X 3D PRINTER
ACCESSIBLE LARGE FORMAT 3D PRINTING - NOW EVEN SMARTER
The BigRep ONE is an award-winning large-format 3D printer with a 1 m³ build volume, offering reliable, full-scale production at an accessible price. Trusted worldwide, it features dual PEX2 extruders with interchangeable nozzles for both high-detail and high-flow applications.
Key Features of the BigRep ONE.5X 3D Printer:
- Massive Build Volume: 1005mm × 1005mm × 1005mm.
- Automated calibration and adaptive leveling ensure accurate, repeatable results with minimal manual setup.
- The new dual PEX2 extruders deliver speed and reliability with flexible configurations, including Single, Dual, or Twin Mode.
- The new user interface balances maximum ease of use with full control.
- The removable SWITCHPLATE print bed ensures strong adhesion across different materials and easy part removal.
- The Keep-Dry Box protects filament from moisture and dust for optimal material handling.
- Durable diamond nozzles and an advanced hotend deliver fast heating and long-lasting performance.
Workflow Simplified by Large-Format
The BigRep ONE.5X's 1005 x 1005 x 1005 mm build volume is the ideal balanced solution for demanding and geometrically complex applications and large parts in full scale. 3D Print large prototypes, architectural models, and functional parts as single pieces instead of breaking them into smaller segments.
- One-cubic-meter build volume enables full-scale 3D printing.
- Large designs can be printed as a single part.
- Reduces post-processing and assembly time.
- Automated calibration ensures accurate results with minimal setup.
Which BigRep Printer is Best?
 STUDIO G2 |
 ONE.5X |
 VIIO 250 |
 PRO |
|
| Price | $65,800 | $69,800 | $114,800 (state which configuration) | $245,800 |
| Best For | Moving from desktop to large format in engineering materials, in an office-friendly footprint | Full-scale 1 m³ parts at the lowest cost per volume, with new automation | Unattended, continuous production with automatic filament handling and extruder backup | Near-1 m³ enclosed production with engineering and carbon-fiber materials |
| Build Volume (W × D × H) | 1000 × 500 × 500 mm (39.4 × 19.7 × 19.7 in), 250 L |
1005 × 1005 × 1005 mm (39.5 × 39.5 × 39.5 in), 1,015 L |
1000 × 500 × 500 mm (39.4 × 19.7 × 19.7 in), 250 L |
915 × 805 × 874 mm (36.0 × 31.7 × 34.4 in) with dual extruders; larger in single-extruder setup |
| Machine Size (W × D × H) | 1715 × 1170 × 1765 mm (67.5 × 46.1 × 69.5 in) |
1848 × 1668 × 2070 mm (72.8 × 65.7 × 81.5 in) ‡ |
1634 × 1069 × 1829 mm (64.3 × 42.1 × 72.0 in) |
1950 × 2500 × 2105 mm (76.8 × 98.4 × 82.9 in) with tower |
| Weight | Approx. 550 kg (1,213 lb) †‡ | Approx. 635 kg (1,400 lb) | Approx. 560 kg (1,235 lb), plus 62 kg (137 lb) per Infinity Box | Approx. 1,500 kg (3,307 lb) ‡ |
| Power | 208–240 V single-phase, 16 A, 50/60 Hz | 208–240 V single-phase, 16 A, 50/60 Hz | 208–240 V single-phase (1P+N+PE), 16 A, 50/60 Hz | 380–400 V 3-phase, 16 A, 50/60 Hz |
| Extruders | Dual SDX (direct drive, fiber-ready) | PEX2: Single, Dual or Twin mode | Dual SMX (one in Classic configuration) | Dual ACE 2.0 (direct drive, fiber-ready), LOCKSTAGE mount |
| Max Nozzle Temperature | 280°C (536°F) | 280°C (536°F) | 350°C (662°F) | 280°C (536°F) |
| Nozzle Sizes | 0.6, 1.0 mm (tool steel †) | 0.6, 1.0, 2.0 mm (diamond) | 0.4, 0.6, 1.0 mm (diamond) | 0.6, 1.0 mm |
| Layer Heights | 0.1, 0.3, 0.6 mm | 0.3, 0.6, 1.0 mm | 0.2, 0.3, 0.6 mm | From 0.15 mm |
| Max Print Speed | 100 mm/s † | 250 mm/s | 500 mm/s † | 600 mm/s † |
| Max Throughput | Not published | 200 g/h | 200 g/h | Not published |
| Build Chamber | Enclosed, up to 40°C | Not published | Enclosed, heated to 50°C | Enclosed |
| Print Bed | Polyimide, up to 100°C | SWITCHPLATE (magnetic, removable), up to 80°C | SWITCHPLATE Prime or Select, up to 120°C | SWITCHPLATE, up to 100°C |
| Bed Leveling & Calibration | Semi-automated leveling | Automated XYZ calibration, adaptive mesh leveling | Automated XYZ calibration, adaptive mesh leveling | Automated calibration, adaptive mesh leveling (MXT) |
| Production Automation | Out-of-filament detection, pause/resume | Relay Mode, auto-sequential printing, input shaping, pressure advance | Relay Mode, auto-sequential printing, Infinity Box auto-loading | Relay Mode |
| Filament Storage | Heated Keep-Dry chamber, 2 spools up to 8 kg | Optional Keep-Dry Box, 2 spools up to 8 kg | Two 8 kg drawers standard; Infinity Box (up to 32 kg, auto-loading) in Productivity configuration | Sealed Keep-Dry chamber, 2 spools |
| Monitoring | Camera †, BigRep CONNECT | BigRep CONNECT ready | HD camera, BigRep CONNECT | HD camera, BigRep CONNECT |
| Achievable Part Accuracy | ±0.25 mm or ±0.003 mm/mm † | ±0.3 mm or ±0.004 mm/mm † | Confirm with BigRep | ±0.2 mm or ±0.002 mm/mm † |
| Certifications | CE | CE | CE, UL ready | UL, CE |
| Slicer | BigRep BLADE (Windows) | BigRep BLADE | BigRep BLADE | BigRep BLADE (Windows) |
| Installation & Training | Required, quoted separately | Required, quoted separately | Required, quoted separately | Required, quoted separately |
Material Compatibility
| BigRep Material | STUDIO G2 | ONE.5X | VIIO 250 | PRO.2 |
| PLA / rPLA | ✔ | ✔ | ✔ | ✔ |
| PETG / rPETG | ✔ | ✔ | ✔ | ✔ |
| PLX | ✔ | ✔ | ✔ | ✔ |
| PRO HT | ✔ | ✔ | ✔ | ✔ |
| HI-TEMP | ✔ | ✔ | ✔ | ✔ |
| HI-TEMP CF | ✔ | ✔ | ✔ | ✔ |
| TPU 98A | ✔ | ✔ | ✔ | ✔ |
| BVOH (soluble support) | ✔ | ✔ | ✔ | ✔ |
| ASA | ✔ | ✔ | ✔ | |
| PA6/66 | ✔ | ✔ | ✔ | |
| PA12 CF | ✔ | ✔ | ||
| All four printers are open material systems and accept third-party 2.85 mm filament. ✔ = BigRep provides a tested BLADE slicing profile. | ||||
Technical Specifications
| Materials | |
| Compatible Materials | Open material system, supports third-party filaments |
| Supported Materials | BigRep materials with BLADE slicing profiles: BVOH, HI-TEMP, HI-TEMP CF, PLX, PRO HT, rPETG, rPLA, TPU 98A |
| Key Features | |
|
Build Volume |
X 1005, Y 1005, Z 1005 mm (X 39.5 Y 39.5 Z 39.5 in) |
| Print Bed Temperature | Up to 80 °C (176 °F ) |
| Print Bed Surface | SWITCHPLATE Prime / Classic |
| Dimensions | X 1848, Y 1668, Z 2070 mm (X 72.8, Y 65.7, Z 81.5 in) |
| Weight | Approx. 635 kg (1,400 lbs ) |
| Extrusion System | |
| Extruders | Dual Power Extruder 2 (PEX2) |
| Nozzle Temperature | Up to 280 °C (536 °F ) |
| Nozzle Sizes | 0.6 / 1.0 / 2.0 mm |
| Layer Height | 0.3 / 0.6 / 1.0 mm (Custom heights supported in BLADE) |
| Throughput | Up to 200 g/h |
| Filament Diameter | 2.85 mm |
| Nozzle Type | Dianoz diamond nozzle |
| Automation | ✔ |
| Out-Of-Filament Detection | ✔ |
| Pause and Resume Print | ✔ |
| Relay Mode (Backup Function) | ✔ |
| Adaptive Mesh Bed Leveling | ✔ |
| Automated Calibration | ✔ |
| Auto-Sequential Printing | ✔ |
| Additional Features | |
| Material Storage | Optional Keep-Dry Box |
| Power | 208–240 V, 16 A, 50/60 Hz |
| Certifications | CE compliant (Machinery Directive 2006/42/EC) |
