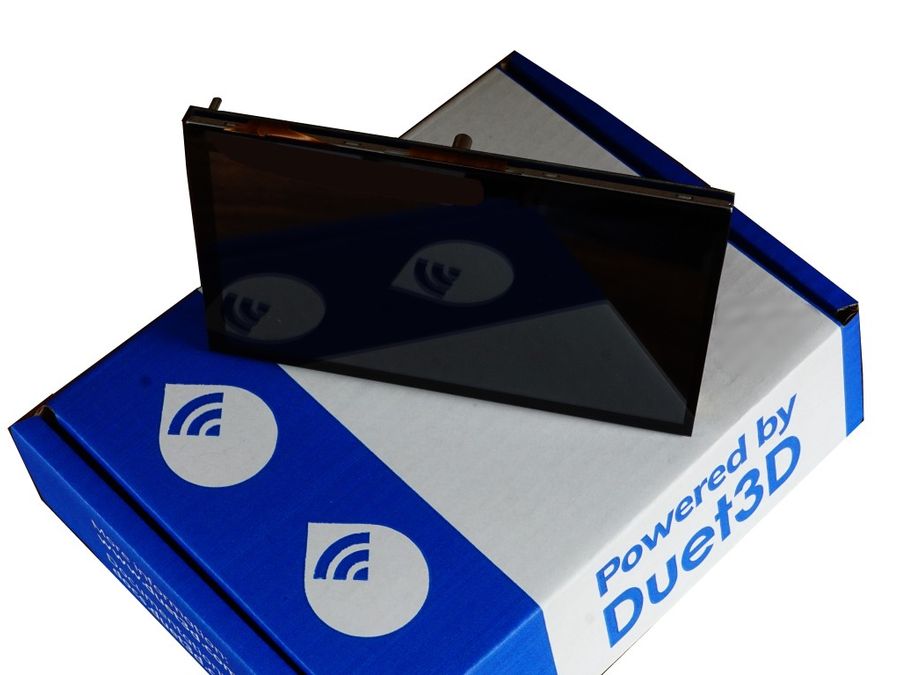

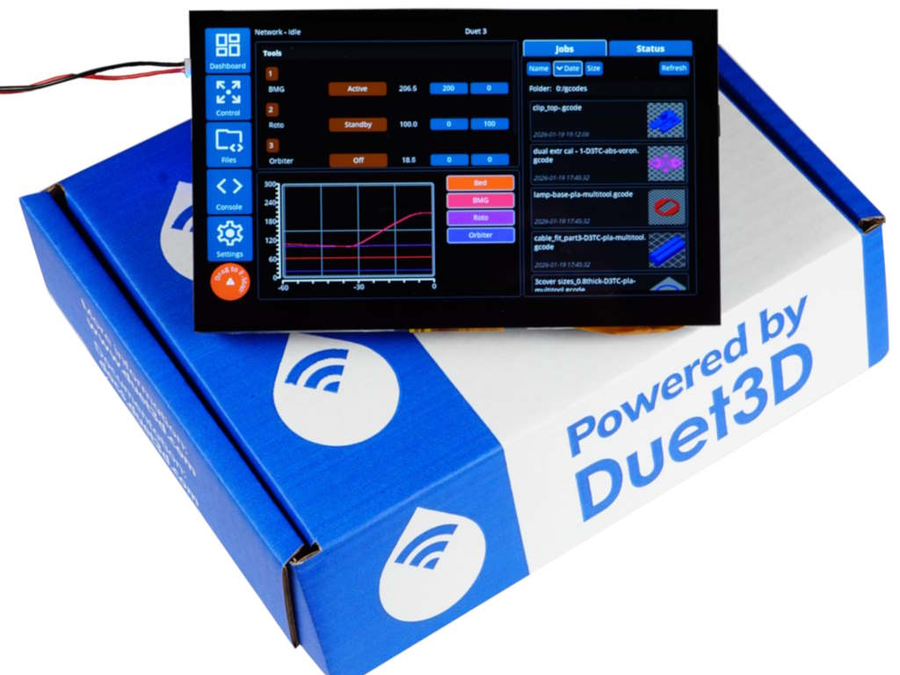

Duet3D Duet3D DuetScreen High Resolution Touchscreen Controller
The Duet3D DuetScreen is a modern color touchscreen controller designed for Duet 2 and Duet 3-based 3D printers and other RepRapFirmware-compatible machines. Built on the LVGL framework, it delivers an intuitive machine control interface with a high-resolution display and wireless connectivity. This advanced control solution transforms your 3D printer operation with professional-grade hardware and responsive touch controls.
- High-resolution 1024×600 capacitive touchscreen for precise control.
- Dual-core ARM Cortex-A7 processor running at 1.2GHz with 128MB RAM.
- Built-in WiFi module with antenna options for wireless connectivity.
- Compatible with Duet 2, Duet 3, and other RepRapFirmware controllers.
| List Price: | $119.00 |
|---|---|
| Price: | $119.00 |
| Price: | $... |
Duet3D DuetScreen
Modern, Bright, and Sharp
Duet3D DuetScreen 7 touchscreen controller for Duet 2 and Duet 3-based 3D printers. Features a 1024x600 display, WiFi connectivity, and LVGL interface.
Key Features of the Duet3D DuetScreen:
- Modern LVGL-based interface optimized for 3D printer operation.
- Multiple connectivity options, including USB-A, USB-C, and UART ports.
- Onboard piezo buzzer with speaker header for audio feedback.
- Modular design allows for future expansion to other machine types.
High-Performance Processing Power
Powered by the Allwinner T113-S3 dual-core ARM Cortex-A7 processor running at 1.2GHz with 128MB RAM. This robust processing capability ensures smooth operation and responsive touch interactions even during complex 3D printing operations.
- Dual-core ARM Cortex-A7 architecture.
- 1.2GHz processing speed.
- 128MB RAM for smooth multitasking.
Crystal Clear Touch Display
Features a vibrant 1024×600 resolution capacitive touchscreen that delivers sharp, detailed visuals for all your printer controls and monitoring needs. The high-resolution display makes it easy to navigate menus, adjust settings, and monitor print progress with precision.
- Sharp 1024×600 pixel resolution.
- Capacitive touch technology.
- Bright color display for clear visualization.
Versatile Connectivity Options
Stay connected with built-in WiFi networking and multiple physical connection options. The integrated WiFi module supports both internal and external antenna configurations, while USB-A and USB-C ports provide additional connectivity for accessories and data transfer.
- Onboard WiFi with antenna options.
- USB-A and USB-C 2.0 ports.
- Multiple UART communication channels.
Technical Specifications
Hardware Specifications
| Processor | Allwinner T113-S3 |
| Processor Features | Dual-core ARM Cortex-A7, 1.2GHz, 128Mb RAM |
| Screen Resolution | 1024 x 600 |
| Touch Screen | Capacitive |
| Networking | Onboard Wifi module, option for internal or external antenna |
| USB | 1 x USB-A and 1 x USB-C 2.0 ports |
| Serial | 3x UART, 1x USART (not populated in version 1.0 hardware or explicitly supported in the DuetScreen Software) |
| Other Comms | 2x I2C (not populated in version 1.0 hardware or explicitly supported in the DuetScreen Software) |
| Buzzer | On Board Piezo Buzzer |
| Speaker | Header to connect an 8 Ohm mono speaker |
Operating Specifications
| Input Voltage | 5V to 5.3V |
| Input Current | 250-500mA, depending on enabled feature and brightness, excluding external devices on USB |
| 5V Current on USB | 500mA total |
| Maximum Ambient Temperature | 70°C |
Link to Duet3D's Documentation
