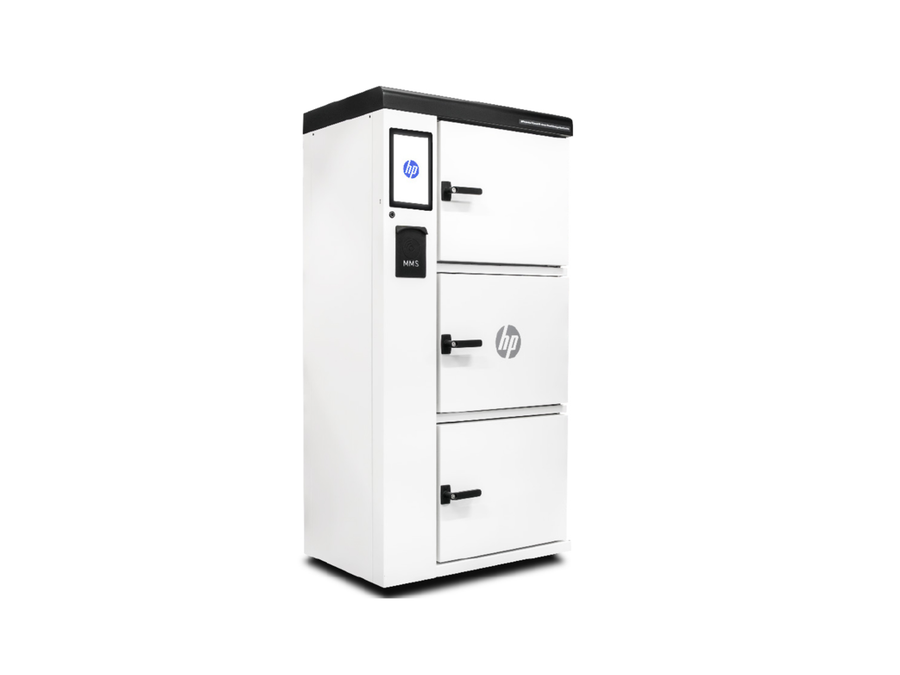

HP HP IF 3D Printer Material Management System
New
Delivers consistent part quality and full traceability across the additive manufacturing workflow. Includes automated material drying and conditioning and built-in post-annealing with preprogrammed cycles for PEEK and PAEK.
- Eliminate traceability gaps for every printed component
- Store print materials in optimal conditions with material drying and conditioning
- Increase heat resistance and strength across production batches with annealing functions
| List Price: | $10,000.00 |
|---|---|
| Price: | $10,000.00 |
| Price: | $... |
loading...
Product No. M-LQD-34MY
HP IF 3D Printer MMS
Performance, Consistent Quality, and Full Traceability
The HP IF 3D Printer Material Management System (MMS) ensures optimal printing performance, consistent part quality, and full traceability throughout the entire additive manufacturing workflow.
Key Features of the HP Industrial 3D Printer Material Management System:
- Automated Material Drying and Conditioning – Keep materials ready to print in optimal conditions with controlled storage and drying processes.
- Full Process Traceability – Track every step from material selection to the final printed part, ensuring complete quality control.
- Built-In Post-Annealing – Strengthen parts, improve heat resistance, and enhance chemical durability for high-performance PEEK and PAEK materials.
- Pre-Programmed Annealing Cycles – Reduce setup time and guarantee consistent results across multiple production runs.
- Optimized for High-Performance Polymers – Designed to handle engineering-grade materials, supporting repeatable, reliable production.
HP IF 3D Printer Material Management System (MMS)
- Automated Material Drying and Conditioning: Keeps materials consistently dry and print-ready with integrated storage and conditioning for optimal print quality.
- End-to-End Process Traceability: Provides complete traceability from material selection through final printed parts for reliable, repeatable production.
- Integrated Post-Annealing for High-Performance Materials: Boosts strength, heat resistance, durability, and chemical resistance with built-in, pre-programmed annealing cycles for PEEK and PAEK parts.
HP IF 3D Printer Material Management System specifications
| Dryer Dimensions | 3 Chambers: 850 x 630 x 1740 mm |
| Max Dimensions with Open Door | 3 Chambers: 850 x 1090 x 1740 mm |
| Working Temperature | 10 ± 28°C relative humidity from 30 - 60% without condensation |
| Storage Temperature | -20 ± 58°C relative humidity 10% bis 85% without condensation |
| Operating Temperature Range | 50 - 200°C |
| Operating Technology | Dry air [actively dried] |
| Drying Chamber Space | 470 x 260 x 320 mm |
| Number of Material Slots in One Chamber | 4 |
| Number of Chambers in Dryer | 3 |
| Max Filament Spool Diameter | 220 mm |
| Max Thickness of Spool | 90 mm |
| Material Tracking System | Smart Material Manager |
| Third-Party Materials | Yes, in the CUSTOM option |
| Drying Process Settings | Predefined / Edition in the CUSTOM option |
| Recrystallization Process Settings | Predefined |
| Device Monitoring and Archiving | Locally and 3DGence CONNECT |
| Construction | Freestanding, equipped with castor wheels |
| Product Certifications | CE and NRTL listed |
| Accessories | Print recrystalization kit Drying agent cartridges Drawers for storing materials in drying chamber |
