HP HP Jet Fusion 3D Automation Accessory for HP Jet Fusion 5620/5620 PRO
Automates build unit exchange to enable continuous production and increase throughput for HP Jet Fusion 3D printers. Reduces manual operator intervention between print jobs and supports extended unattended operation. Save on cost per part by increasing printer utilization.
- Enable continuous unattended production for 24/7 throughput
- Reduce operator intervention to minimize downtime and delays
- Lower cost per part through sustained higher uptime
To learn about available discounts, training, and maintenance options, please use the form below and a MatterHackers Expert will contact you within one business day. Alternatively, you can always feel free to give us a call at +1 (800) 613-4290 or email sales@matterhackers.com.

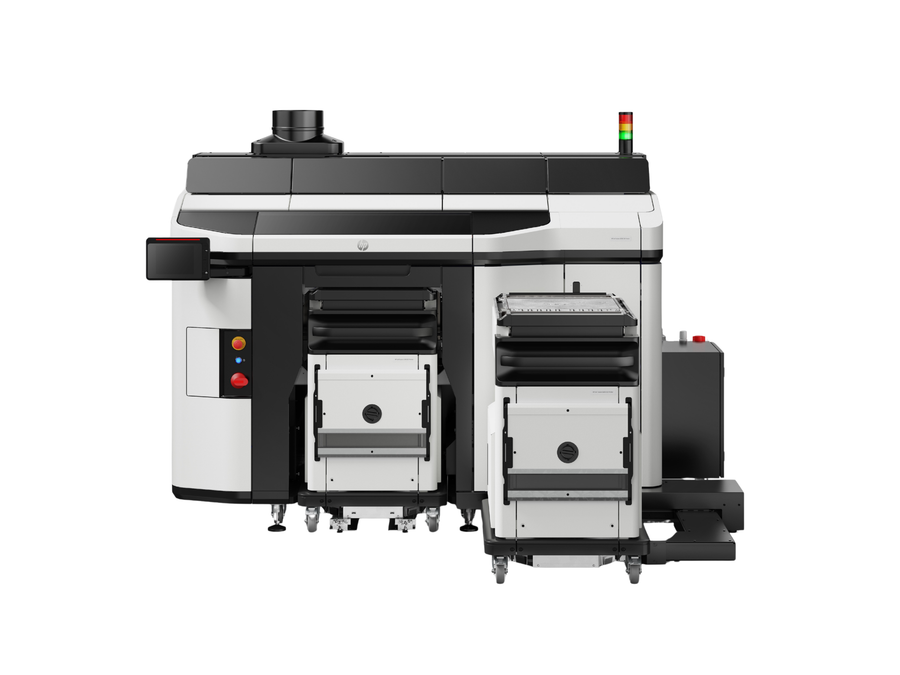

HP Jet Fusion 3D Automation Accessory
AUTOMATE YOUR WAY TO HIGHER THROUGHPUT
The HP Jet Fusion 3D Automation Accessory enables continuous production for Multi Jet Fusion printers. It automates build unit exchange, reducing manual intervention between print jobs. This automation helps maximize printer utilization and supports extended operation, reducing cost per part while increasing throughput. This accessory is ideal for high-volume manufacturing environments requiring enhanced productivity and operational efficiency.
Key Features of the HP Jet Fusion 3D Automation Accessory:
- Automates build unit exchange between print jobs
- Reduces manual intervention and operator time
- Supports continuous, extended production operations
- Increases overall printer utilization and throughput
- Lowers cost per part with higher uptime and less hands-on work
- Enhances productivity for high-volume manufacturing
Please note this is an optional upgrade accessory to be purchased in addition to an HP Jet Fusion 3D Printer.
TECH SPECS
| FEATURES | Automatic exchange of two Build Units between two printing cycles |
| PRODUCT COMPATIBILITY |
HP Jet Fusion 5200 Series 3D Printing Solutions HP Jet Fusion 5400 Series 3D Printing Solutions HP Jet Fusion 5600 Series 3D Printing Solutions |
| MATERIAL COMPATIBILITY |
HP 3D High Reusability PA12, enabled by Evonik HP 3D High Reusability PA12 S, enabled by Arkema HP 3D High Reusability PA12 FR, enabled by Evonik HP 3D High Reusability PA11 HP 3D High Reusability PP HP 3D High Reusability PA12 W |
| SHIPPING DIMENSIONS (W × D × H) |
1200 × 1580 × 1050 mm (47.2 × 62.2 × 41.3 in) |
| PRINTER WITH ACCESSORY INSTALLED |
2560 × 1908 × 1804 mm (100.8 × 75.1 × 71.0 in) |
| OPERATING AREA (W × D × H) |
4050 × 4340 × 2500 mm (159.4 × 170.9 × 98.4 in) |
| PRODUCT WEIGHT | 262 kg (578 lb) |
| SHIPPING WEIGHT | 311 kg (686 lb) |
| POWER | No additional requirements as the HP Jet Fusion 3D Automation Accessory is connected to the HP Jet Fusion 5200/5400/5600 Series printing solutions |
| MINIMUM AIR PRESSURE | 6.5 bar |
| MINIMUM AIR FLOW | 30 liters per minute |
| SAFETY (CERTIFICATIONS / STATEMENT) |
EU (LVD and MD Compliant, EN 62368-1, EN 60204-1, EN ISO 12100, EN 1010), USA (UL listed) |
| ELECTROMAGNETIC (CERTIFICATIONS / STATEMENT) |
EU (EMC Directive Compliant with Class A requirements), USA (FCC rules), Canada (ICES), Korea (KCC) |
| OPERATING TEMPERATURE | 20-30°C (68-86°F) |
| OPERATING HUMIDITY | 40-80% without condensation 50-70% is extremely recommended for good operating conditions with PA 12 |
| NETWORK | No additional requirements, as the HP Jet Fusion 3D Automation Accessory is connected to the HP Jet Fusion 5200/5400/5600 Series printing solutions |
| WARRANTY | One- year limited hardware warranty |
